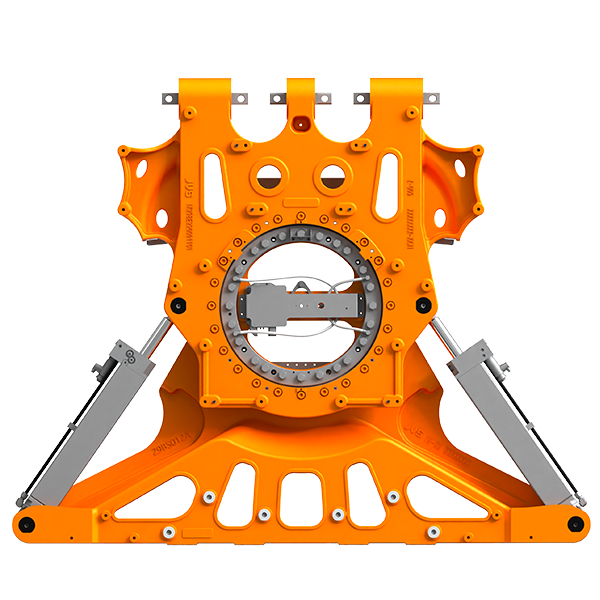

Heavy load articulation system: TYPE E is specifically designed for 14~18m rear drive electric, hybrid and CNG articulated bus, which is the optimum choice for the floor height of 380~400mm low floor as well as 600~1200mm high floor articulated bus. The highlight of TYPE E is heavy load capacity and high reliability.
Applied to electric, CNG and hybrid heavy load bus.
High load capacity and torque reserve provide with perfect reliability & stability
Hydraulic and electrical control system ensure vehicle in smooth operation.
Integrated delivery, easy for installation.
Customized design folding bellow make sure perfect matching with bus body.
WEIGHT
670KG
MAXIMUM STATIC LOAD
50kN
BENDING ±54°
PITCHING ±10°
TORSION ±3°
CONTROL SOLUTION
Electrical Multiple Damping, Proportional Control
LENGTH
1627mm
MAXIMUM WIDTH
1940mm
TOTAL THICKNESS
228mm
PLATFORM RADIUS
920mm
TEMPERATURE
-45℃~+65℃
OPERATING VOLTAGE
24V
